TEMICO’s Industrial motor range
|
TECO with 63 years of global expertise in motor manufacturing has been leverage
to India through M/s. TEMICO Motor India Pvt Ltd, The Production Plant with a
State of the art and the World Class latest technology, processes being set up
at TIIP, High-Tech Defence and Aerospace Park, Bengaluru, for manufacturing A.C.
Energy Efficient Electric Motors.
Quality First concept has been presented in the culture since from the
beginning, this highest standard has enabled the company to progressively
produce the motors that meets the international standards through complete line
of motors ranging from 0.25 HP to 100 HP (balance in the next phase) and a broad
section of engineered products including high efficiency motors to meet a
variety of customer needs TEMICO has earned a world-renowned and become
a leading manufacturer. |

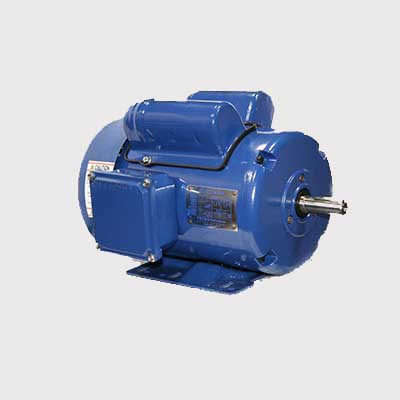

Single Phase Motors
|
|
![](TEMICO_1_files/SINGLE_ph.jpg) |
General Speciation
HP
: 0.5 - 3 HP
Speed : 1500
RPM
Voltage
:
215 V
Cooling : TEFC ,
DPFC
Duty
: Continuous
Rotation
:
IP55
Application : General purpose
Frequency
:
50 Hz
Features
Single Phase, 50 Hz;
215 V +/- 10 %
Capacitor Start, Capacitor Run
Class F Insulation
Class B Temperature Rise
Altitude : 1000 mtrs from sea level
Bi-Directional Rotation
Rolled Steel Frame
Cast Aluminium Terminal Box
Aluminium Die Case Rotor Construction
Double Shielded Bearings Pre-Packed with Lithium Base Grease
Grounding Terminal Inside Main Box
Copper winding
Download Brochure
|
(IE2)
High Efficiency Motors |

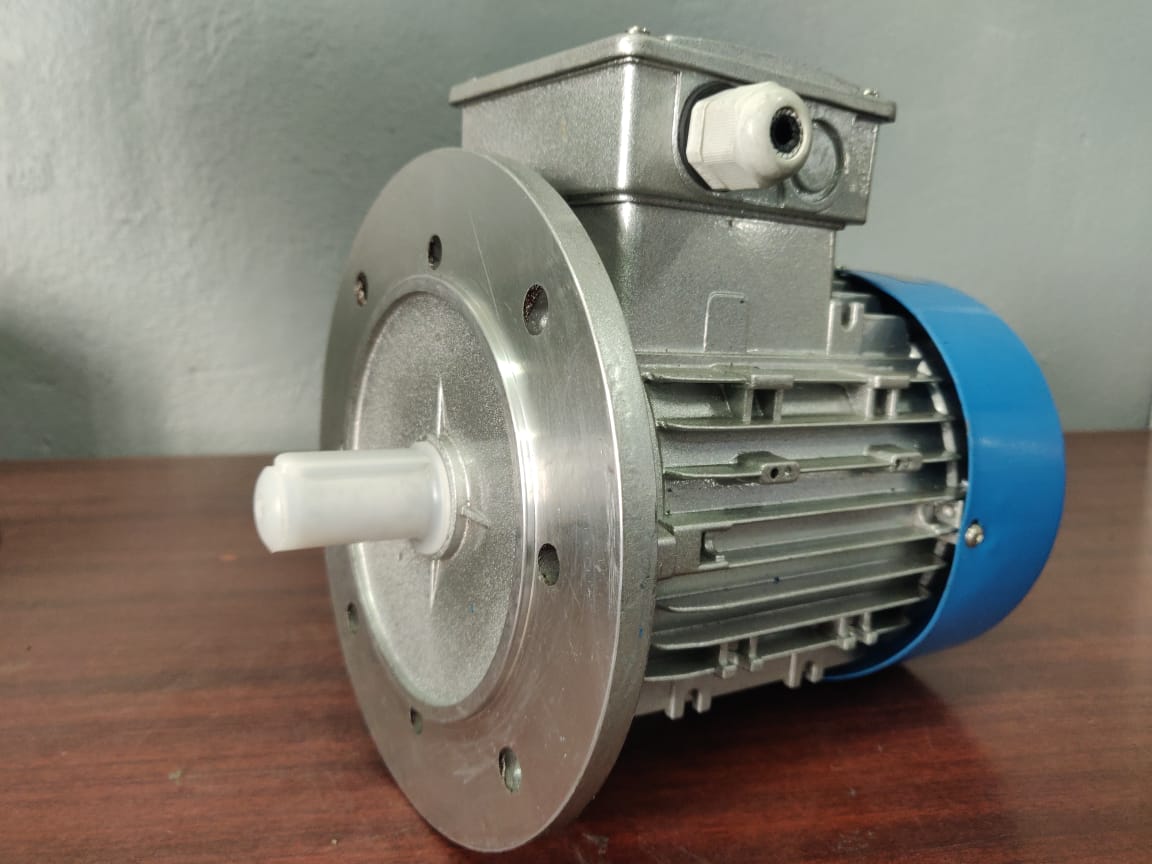

Aluminium
Series |
|
![](TEMICO_1_files/Aluminium.jpg)
|
General Speciation
HP
: 0.5 - 5 HP
Voltage
: 215 V ( +/- 10 % )
Cooling : TEFC , DPFC
Duty :
Continuous
Rotation : IP55
Application : General purpose
Frequency : 50 Hz
Features
50 Hz / 60 Hz
Three Phase
Capacitor Start, Capacitor Run
Class F Insulation
Class B Temperature Rise
Altitude : 1000 mtrs from sea level
Bi-Directional Rotation
Cast Aluminium Terminal Box
Aluminium Die Case Rotor Construction
Double Shielded Bearings Pre-Packed with Lithium Base Grease
Grounding Terminal Inside Main Box
Copper winding
Download Brochure |
|
|

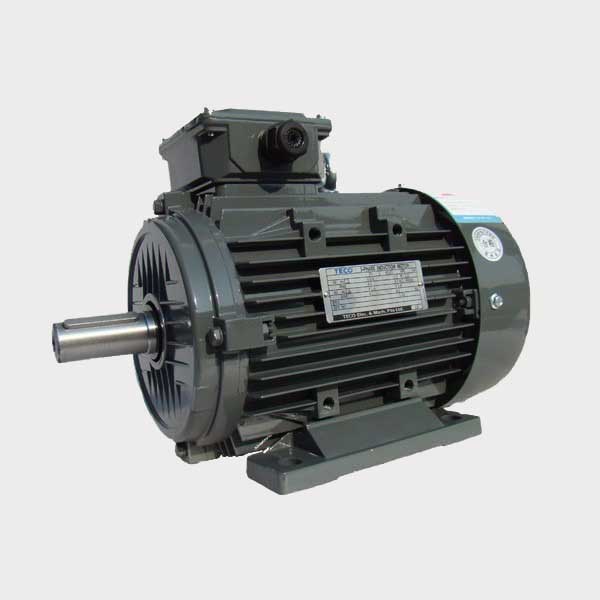

Cast Iron Series |
![](TEMICO_1_files/2E_indl.jpg)
|
General Speciation
HP : 0.5 - 75 HP
Frames : 71 to 250 frames
Voltage : 215 V ( +/- 10 % )
Cooling : TEFC , DPFC
Duty : Continuous
Rotation : IP55
Application : General purpose
Frequency : 50 Hz, 60 Hz
Poles : 2/4/6/8
Features
50 Hz / 60 Hz
Three Phase
Capacitor Start, Capacitor Run
Class F Insulation
Class B Temperature Rise
Altitude : 1000 mtrs from sea level
Bi-Directional Rotation
Cast Aluminium Terminal Box
Aluminium Die Case Rotor Construction
Double Shielded Bearings Pre-Packed with Lithium Base Grease
Grounding Terminal Inside Main Box
Copper winding
Download Brochure |

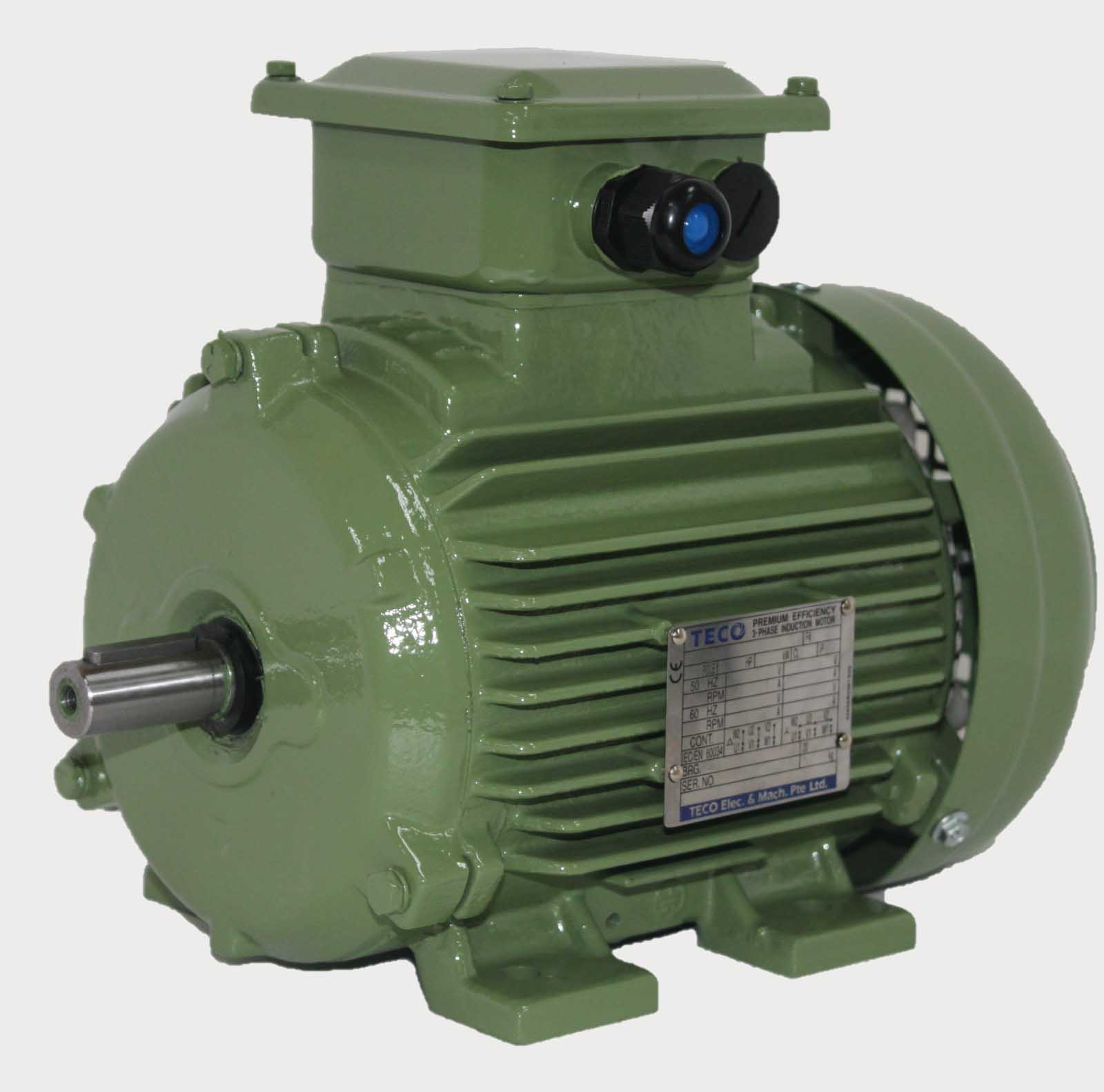

(IE3) Premium Efficiency Motors |
|
|
|
![](TEMICO_1_files/Ie3-Indl.jpg)
|
General Speciation
General Speciation
HP : 1 HP - 300 HP
Frames : 71 to 250 frames
Voltage : 215 V ( +/- 10 % )
Cooling : TEFC , DPFC
Duty : Continuous
Rotation : IP55
Application : General purpose
Frequency : 50 Hz, 60 Hz
Poles : 2/4/6/8
Features
50 Hz / 60 Hz
Three Phase
Capacitor Start, Capacitor Run
Class F Insulation
Class B Temperature Rise
Altitude : 1000 mtrs from sea level
Bi-Directional Rotation
Cast Aluminium Terminal Box
Aluminium Die Case Rotor Construction
Double Shielded Bearings Pre-Packed with Lithium Base Grease
Grounding Terminal Inside Main Box
Copper winding
Download Brochure
|
|
|
|
|
|
|
|
|
|
|
|
|
|
